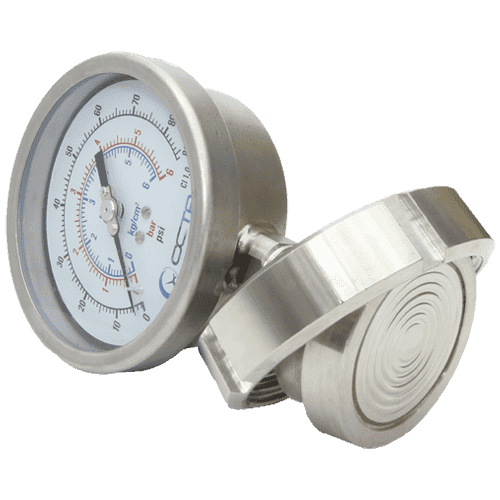

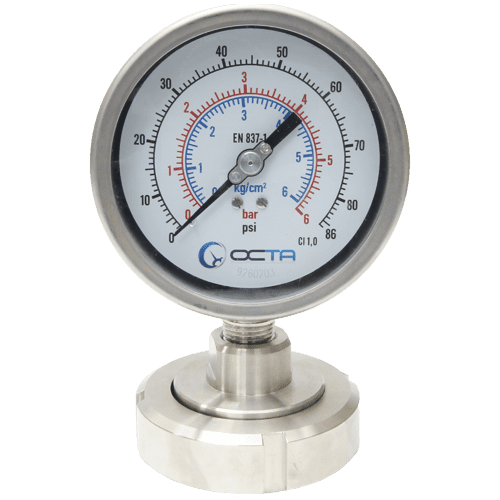

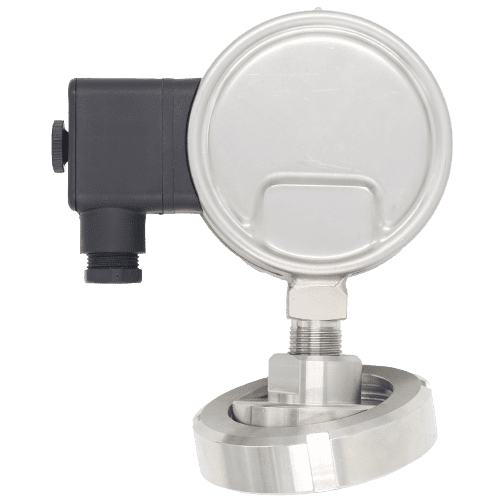

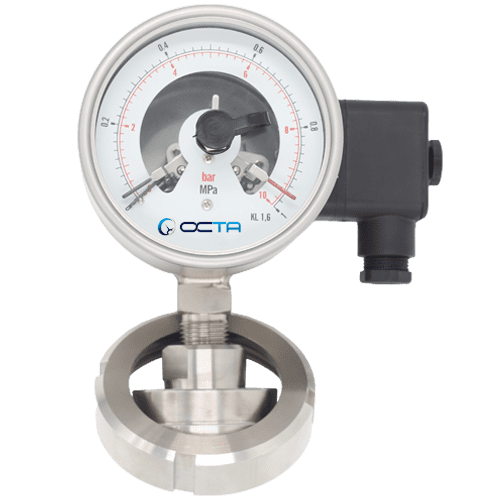

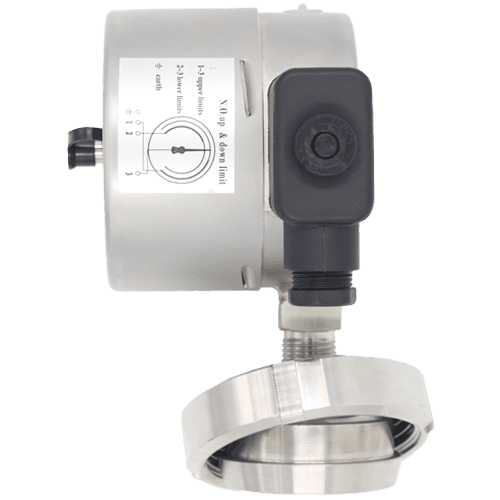

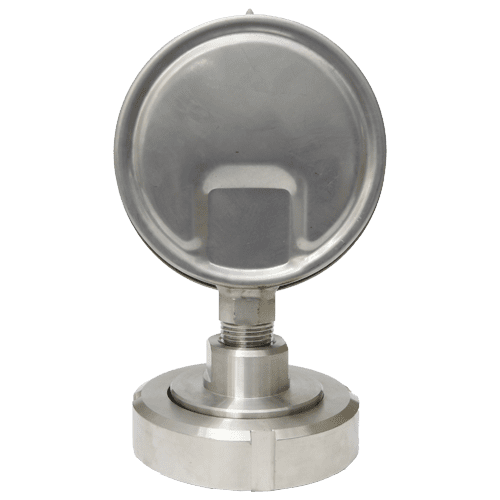

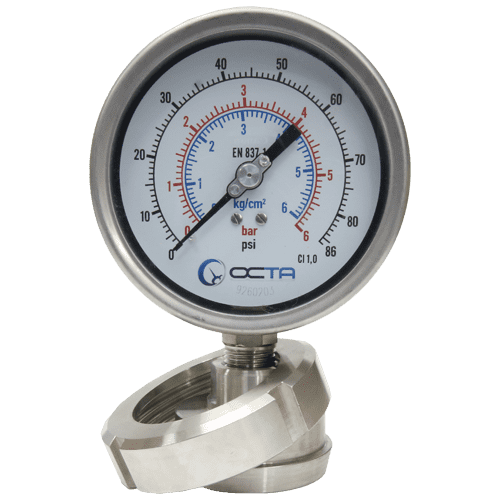

Diaphragm-Seal DS-UNION

Application

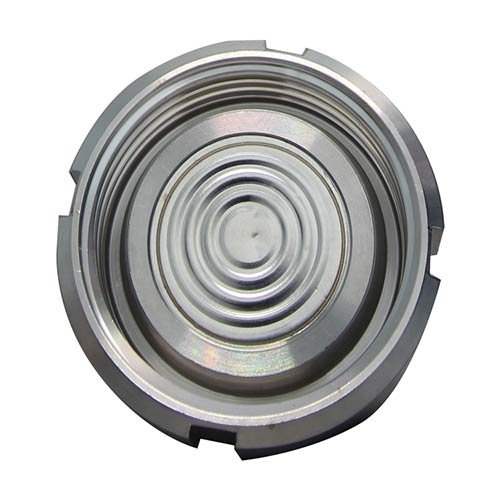

sanitary diaphragm seal. The diaphragm is flush welded to the body construction. It is mostly
used in food and beverage industries, food industries, water

processings and others where hygienic process condition are required.

Table of Contents

Diaphragm Seal Model : DS-Union

Specifications

Instrument connection: 1/2″ NPT female SS316

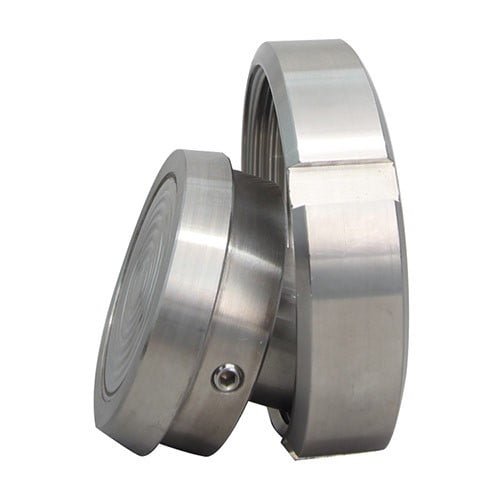

Process connection: Union nut , SS316
Process temperature: -45+1500C
Filling liquid: Silicone oil, vegetable oil
Pressure range: 0-60bar
Material: Diaphragm: SS 316L, SS316L PTFE coating,SS316L Teflon lined, HC, TI etc
Body: SS 316, SS304
