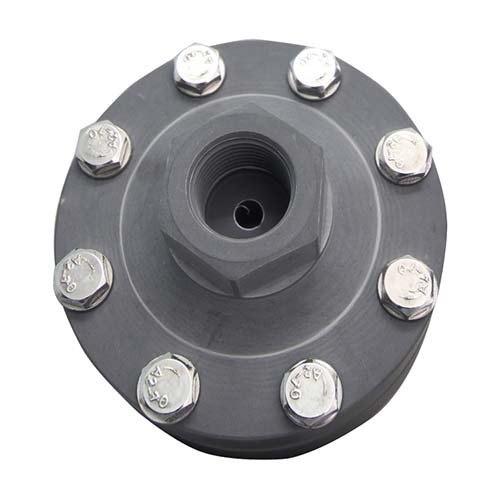

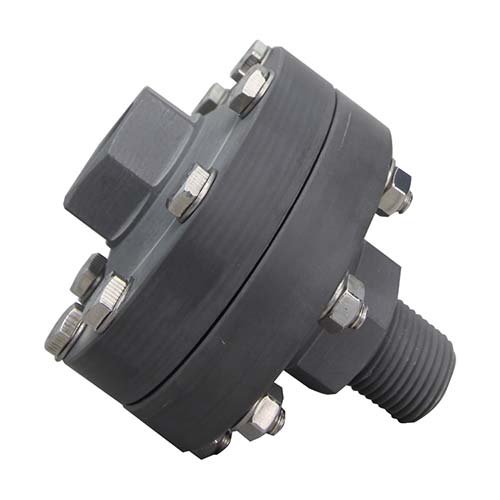

Diaphragm-Seal DS-uPVC

 Application

  • Provides an economical solution to protect instruments from corrosion and clogging
  • Used to isolate and protect a pressure instrument on ultra-pure or highly corrosive fluid lines
  • Can be used with liquids such as demineralized water, sulphuric acid, hydrochloric acid and caustic gases (such as corrosive air and ammonia), where such fluids will corrode metal instruments
  • Review of chemical compatibility is available upon request



Table of Contents

Description

Diaphragm Seal Model : DS-uPVC

Connection

Instrument connection :  NPT 1/2′ Female

Process connection : NPT 1/2″ Male

Process temperature maximum : 60 deg C

Pressure rating maximum : 10 bar

Material Body : UPVC

Diaphragm : PTFE

Gallery

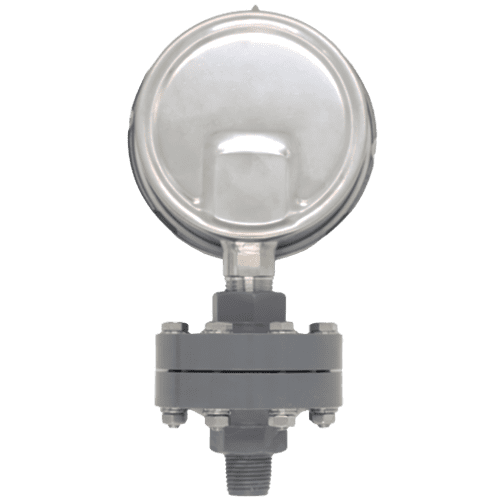

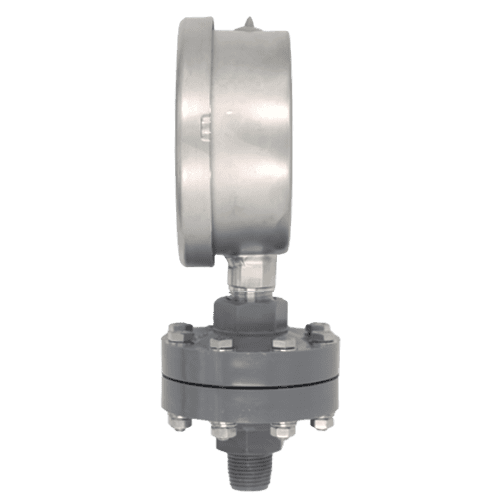

Gallery for Pressure Gauge GS-100 OCTA with Diaphragm Seal

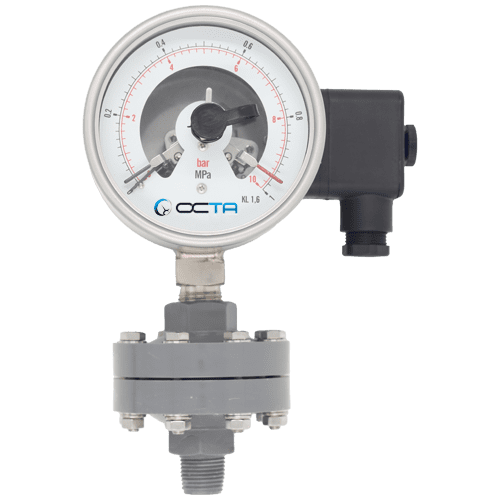

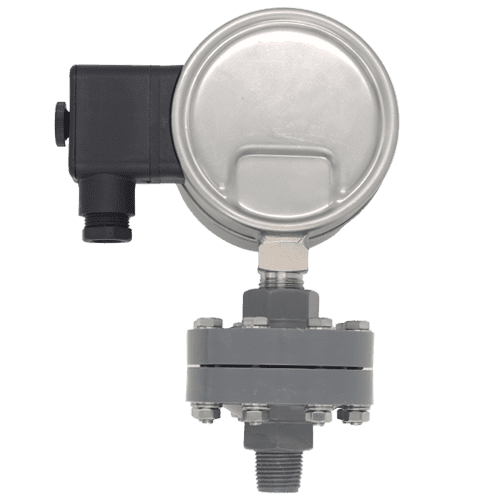

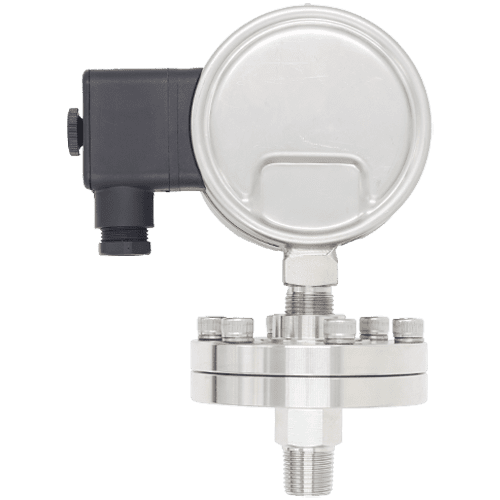

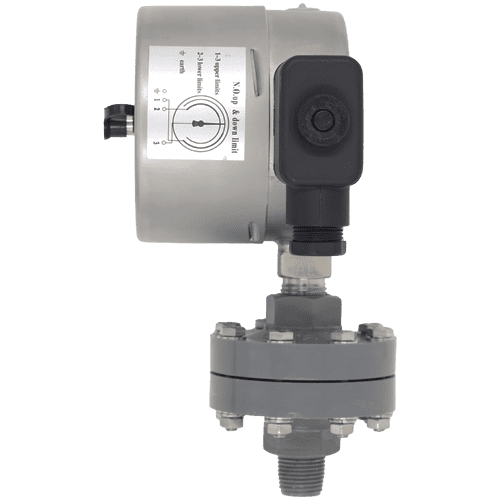

Gallery for Pressure Gauge with Contact OCTA with Diaphragm Seal

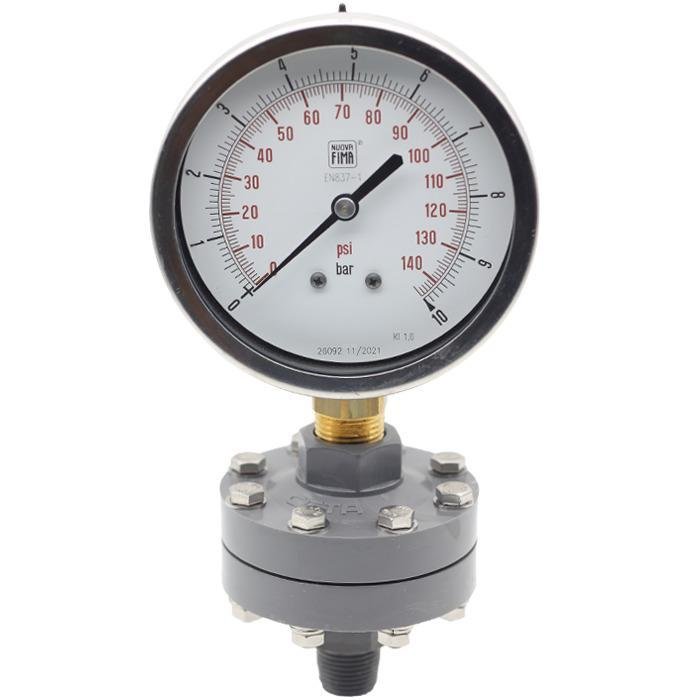

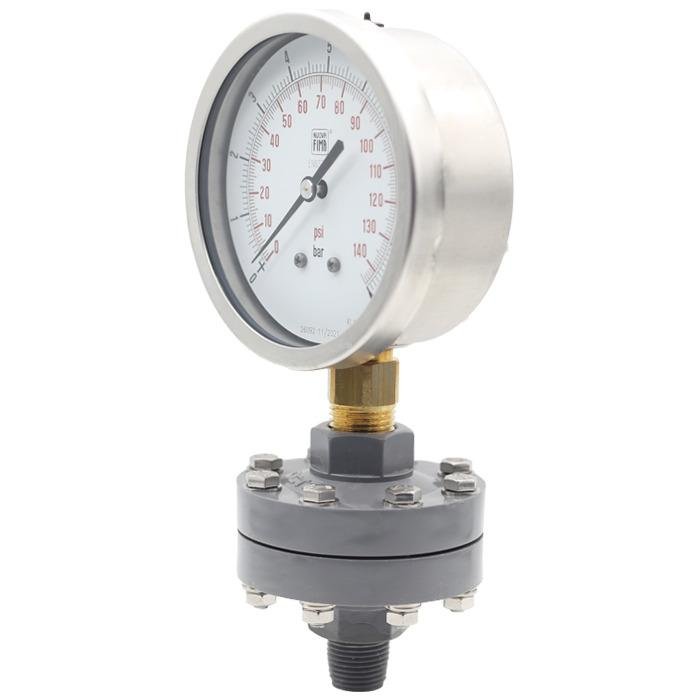

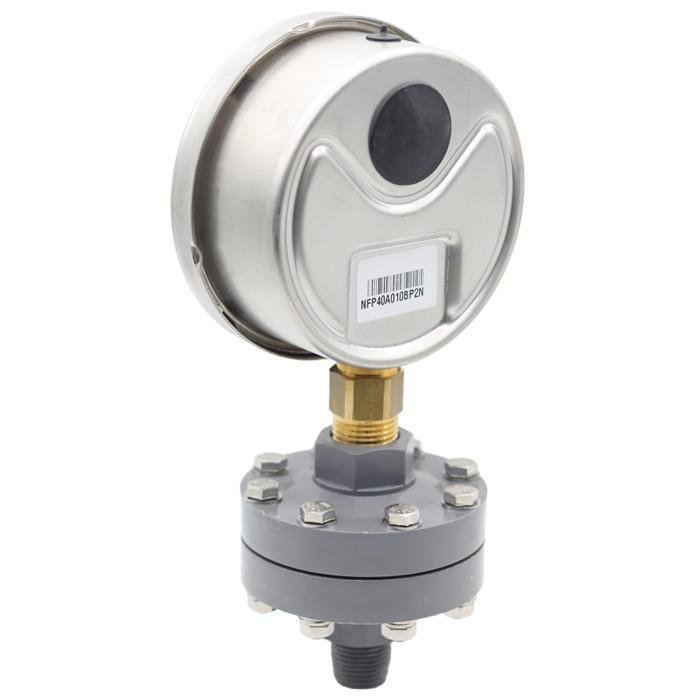

Gallery for Pressure Gauge with Nuovafima with Diaphragm Seal
