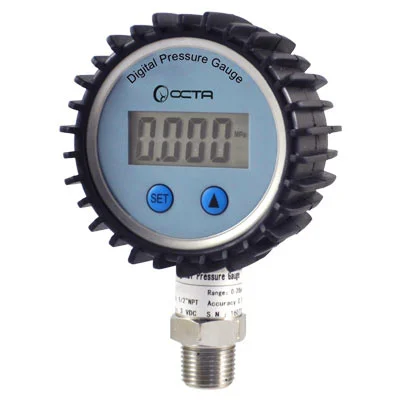

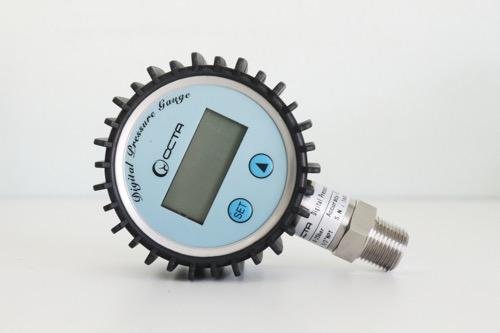

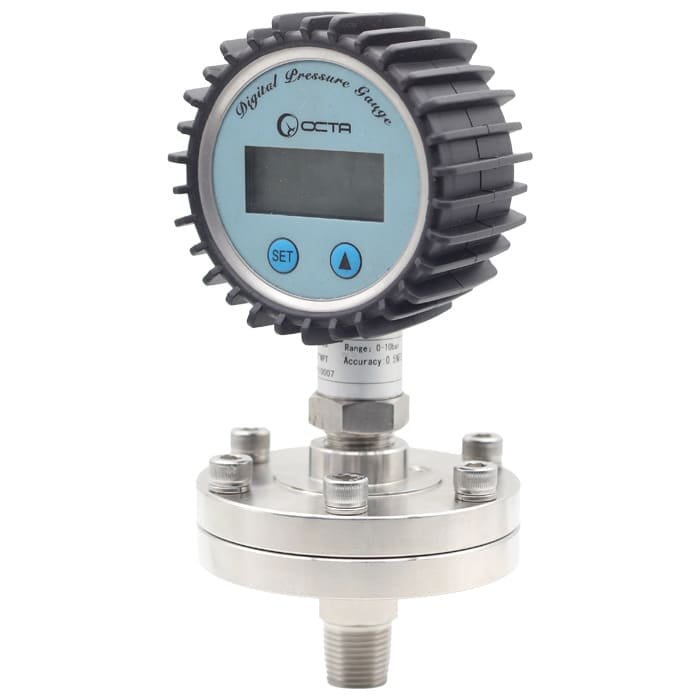

Digital-Pressure-Gauge GD-1010J

Applications

GD-1010J is a digital pressure gauge, designed with battery supply, A LCD display with alterable unit of pressure (kPa, MPa, Bar, Psi) selected is provided for
indicating the pressure. Directly local value reading. The lifetime is nearly 3-5 times than the mechanical pressure gauge. It is the best choice for pressure measuring and controlling in the equipment of petroleum industry, chemical industry, drinking water treatment, food machine etc.

Table of Contents

Digital Pressure Gauge GD-1010J

Are you looking for a digital pressure gauge to help monitor and control the pressure in your business ? If so, it can be tough to determine which one is right for your needs. There are many different types of digital pressure gauges on the market, each with its own set of features and benefits.
To start, you’ll need to decide what type of digital pressure gauge you need. There are two main types: analog and digital. Analog gauges are the more traditional type, and they’re still widely used today. Digital pressure gauges are newer and offer more accurate readings. If you need a high-precision gauge, a digital one is likely the better option.

Once you’ve decided on the type of digital pressure gauge you need, you’ll need to select the right model. each with its own set of features and benefits. Some models are more basic, while others offer more advanced features. Choose a model that has the features you need and that falls within your budget.

Specification

Dial sizes: 80 mm.
Case Protection Class: Weatherproof, IP65
Range: -1 to 0 bar, 0-1 to 1000 bar
Accuracy: ± 0.25% FS, ± 0.5% FS
Over load: 200% FS
Display: 4 digital LCD display
Operating Temperature: -10 °C to 60 °C
Relative humidity: <85%
Supply: Inside DC3V battery
Measure medium: Liquid and Gas which is compatible with 316L SS
Wetted Materials: 316 SS
Socket Size: 1/2″ NPT
Net Weight: About 457g (Battery Included)



Operating Instruction

Press “set” Allows for recalibration of Zero Press “A” On/Off (Press for 3 seconds)
