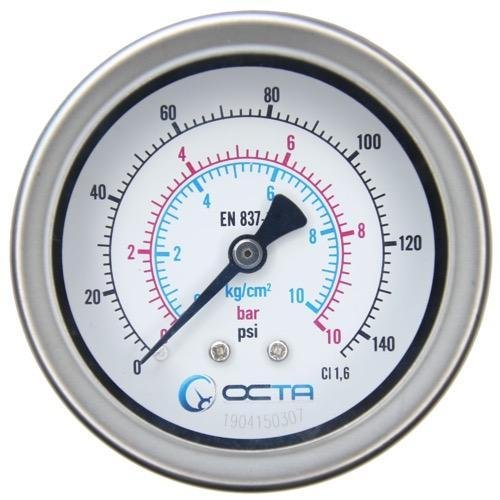

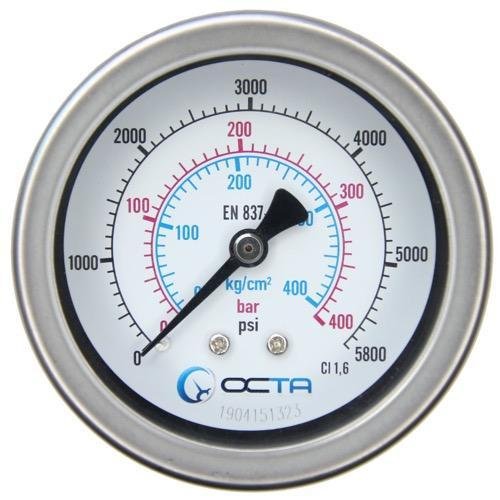

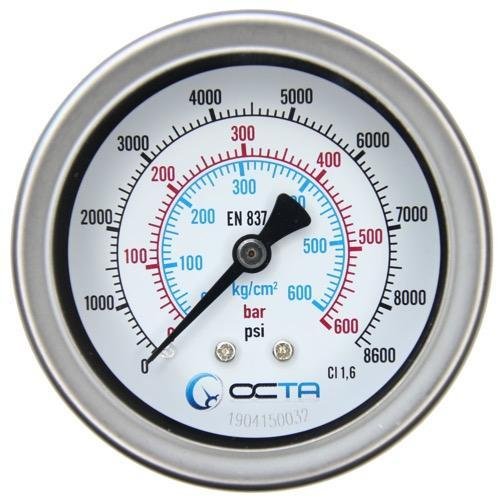

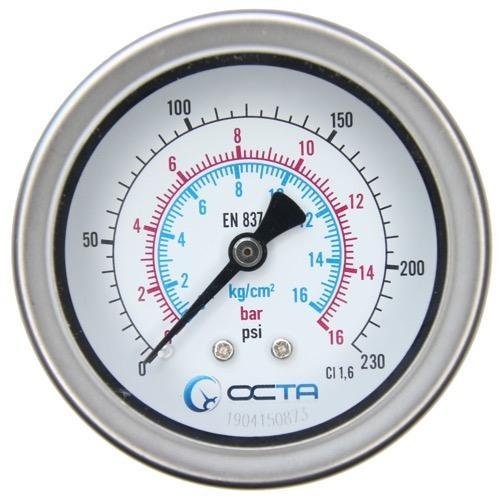

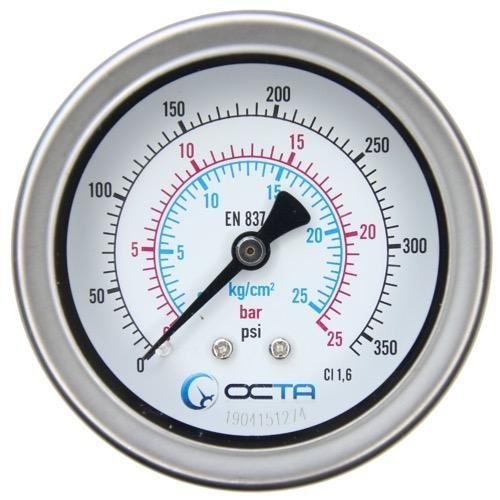

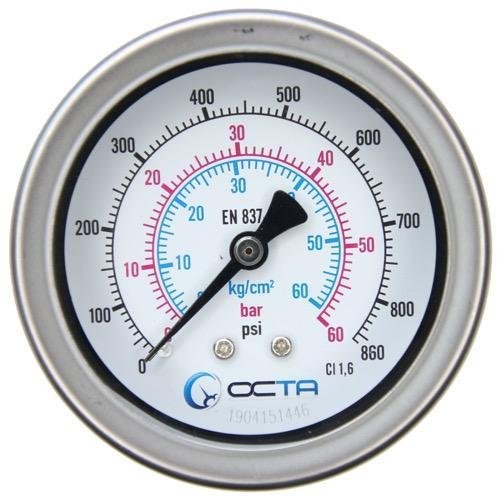

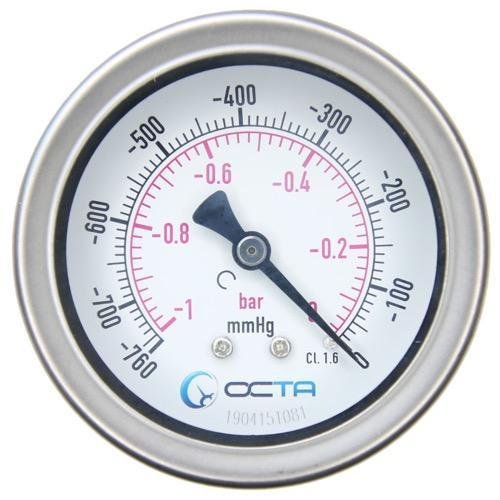

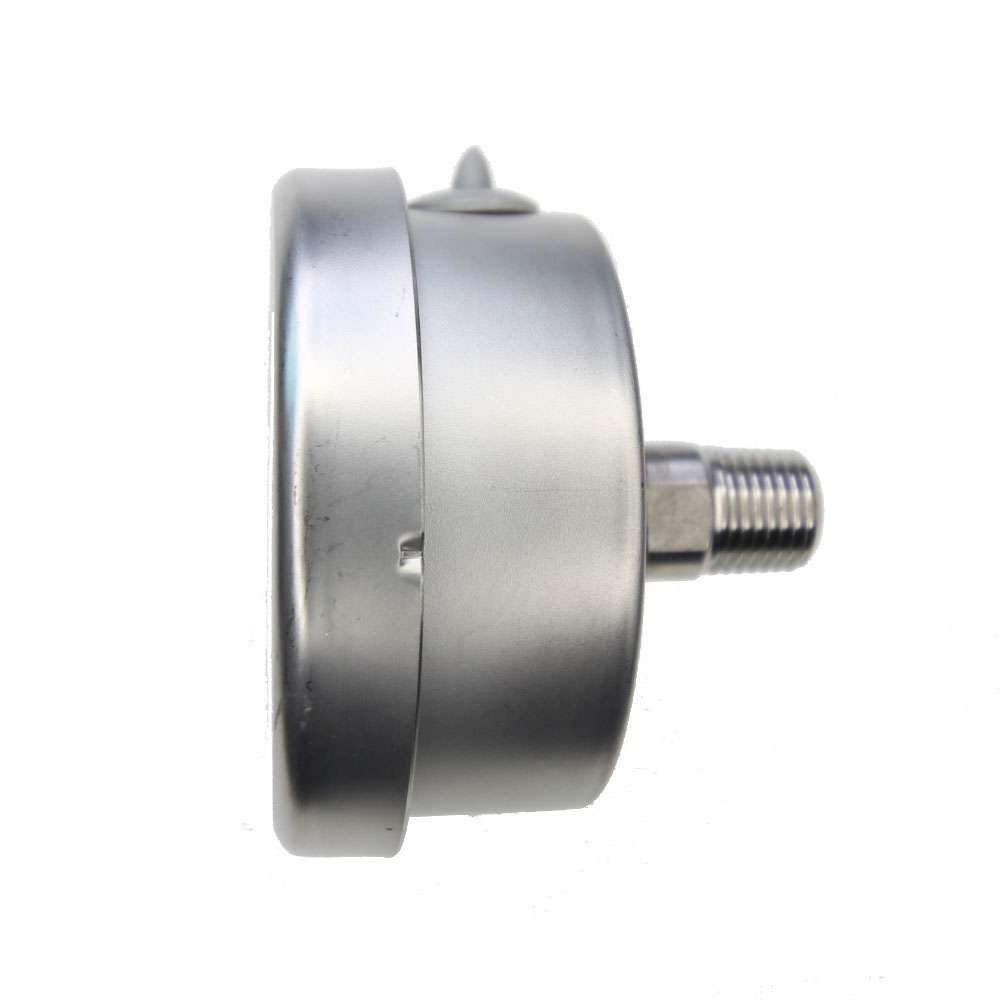

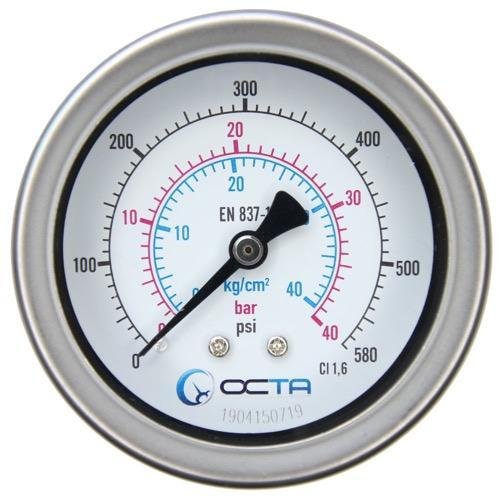

Nominal size : GSK63 : 63mm. (2.5”) , GSK100 : 100mm. (4″)
Design : EN837-1
Accuracy class : 1.6
Operating temperature : Ambient : -40 to 70 deg C Medium : + 70 deg C
Material
Case : Stainless steel
Window : Toughened glass
Dial plate and pointer stop : Aluminum
Pointer : Black aluminum
Bourdon tube : Stainless
<100 bar : C shape
>100 bar : Helical type

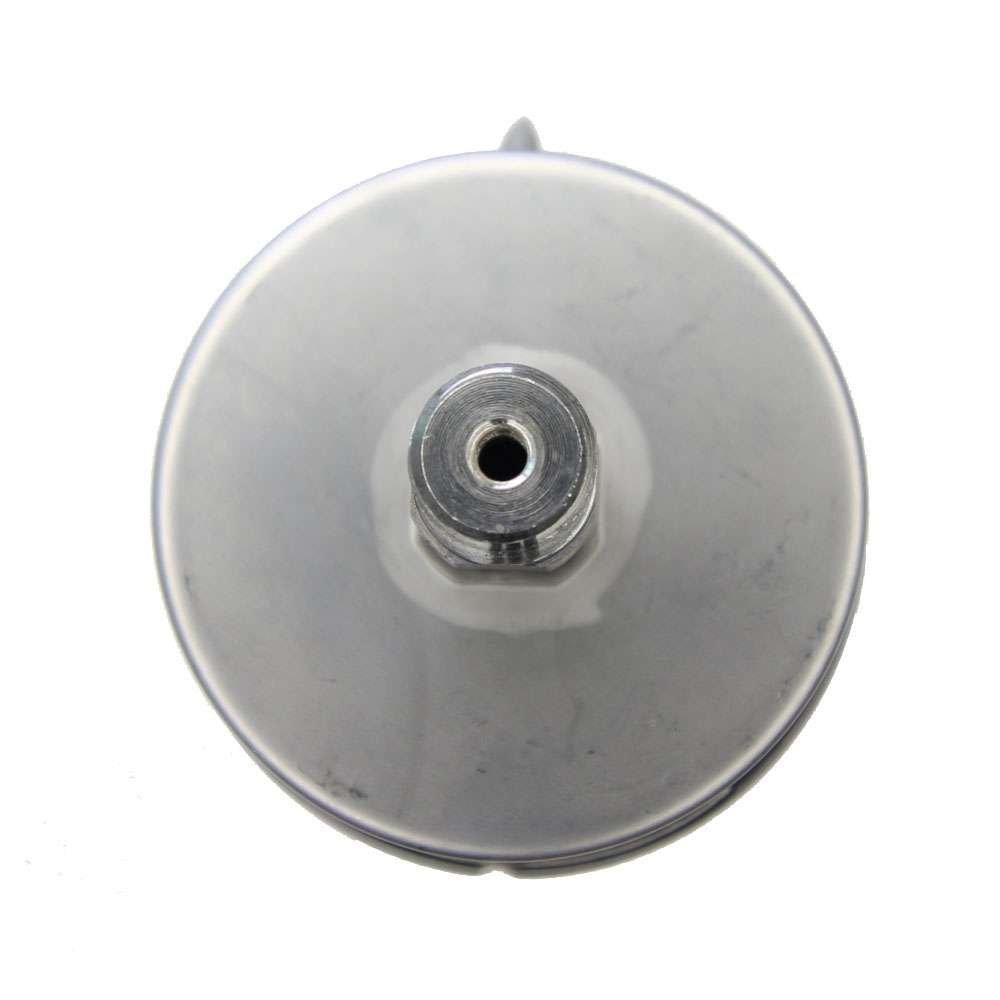

Connection : Stainless
Movement : Stainless
Protection Class : IP 65
Options
Silicone oil filling , Glycerin
*Dimension : see specification
——————————————————————————————————————————–
