Contact-Gauge 1713-1714-Series

(2 customer reviews)
Category

Applications:
1713,1714 series magnetic snap on gauge is designed for automatic control and signals transfer. When the pressure get to the set value, the contact open/closes the circuits. pressure gauge electric contact 1713,1714 series is suitable for harsh and corrosive environment.

Table of Contents

Description

Pressure Gauge With Contact Model : 1713, 1714

Specifications

Connection: NPT 1/2”
Nominal sizes: 4”
Protection class: IP 54 or IP 65 (for liquid filled 1714 series)
Scale Range, according to EN 837-1/5
Operating Temperature: Ambient: -200 C to 600 C, medium: 600 C maximum

Material Specification for Pressure gauge

Case : Stainless Steel case and DIN bayonet ring
Window: instrument glass
Wetted parts: Stainless Steel
Movement: Stainless Steel

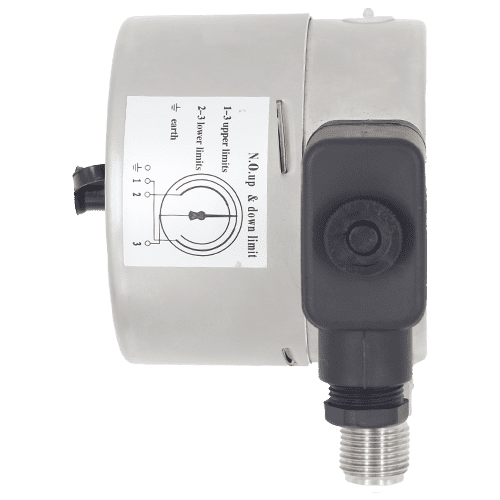

Contacts: Two contacts (high alarm, low alarm)
Maximum working voltage: AC380V or DC220V
Maximum current: 1A
Contact Power: 30VA

Options

* 1714 series: Special Silicone oil filled


เกจวัดแรงดัน แบบมีสวิตซ์ (คอนแทค)

ข้อต่อ : NPT 1/2” for 4”
ขนาดหน้าปัด : 4”
มาตราฐานกันน้ำกันฝุ่น : IP 54 or IP 65 (for liquid filled 1712 series)
มาตราฐาน : EN 837-1/5
อุณหภูมิ : Ambient: -200 C to 600 C, medium: 600 C maximum

วัสดุ

ตัวเรือน : สแตนเลส
หน้าปัด : instrument glass
เกจวัดภายใน : สแตนเลส
ข้อต่อ: สแตนเลส
จำนวนสวิตซ์ : 2 สวิตซ์, (1 สวิตซ์แจ้งเตือนค่าต่ำ , 1 สวิตซ์แจ้งเตือนค่าสูง)
แรงดันสูงสุด : AC380V or DC220V
กระแสสูงสุด : 1A
กำลังไฟสูงสุด : 30VA

*ขนาดและมิติรุ่น : ดูได้จากสเปคแนบ

Gallery

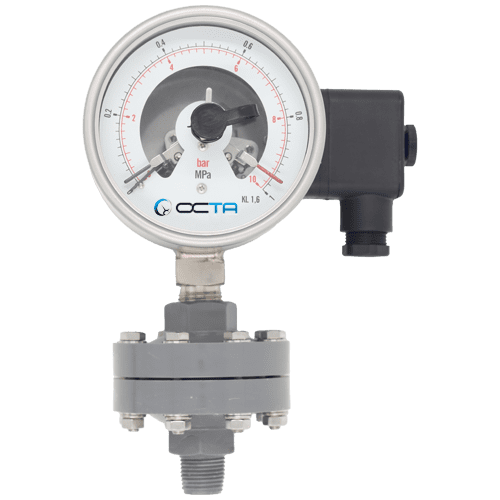

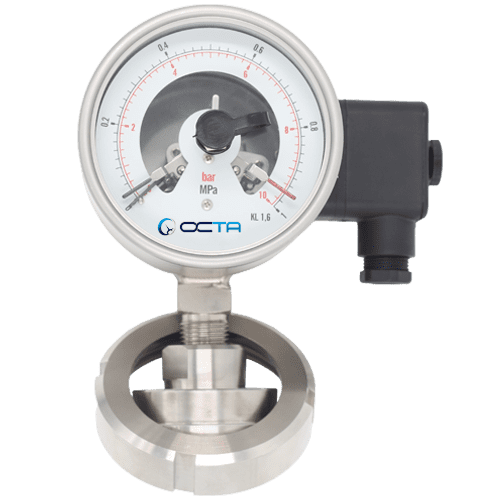

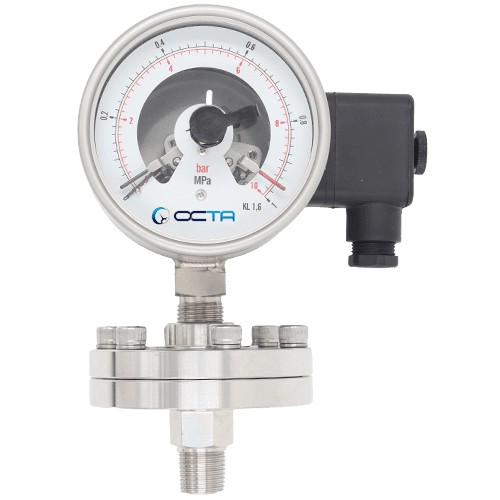

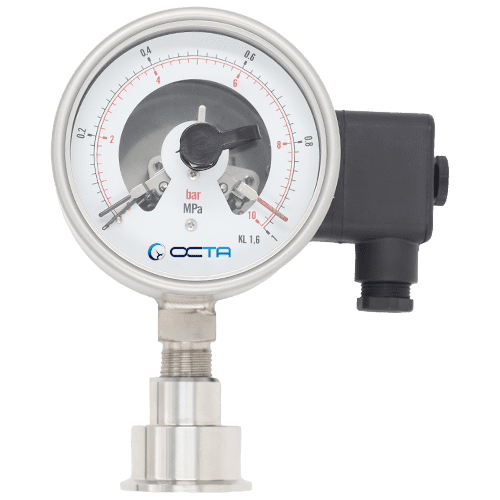

Gallery for Pressure Gauge with Contact with Diaphragm Seal OCTA
