Diaphragm-Seal DS-H FLANGE

Application
Diaphragm Seal DS-H FLANGE is designed to isolate the sensing element of pressure gauges from process fluids that may be corrosive, viscous, sedimentous and/or with high temperature. Diaphragm Seal is suitable for pressure from -1 to 25bar with flanged end design.

Table of Contents

Description

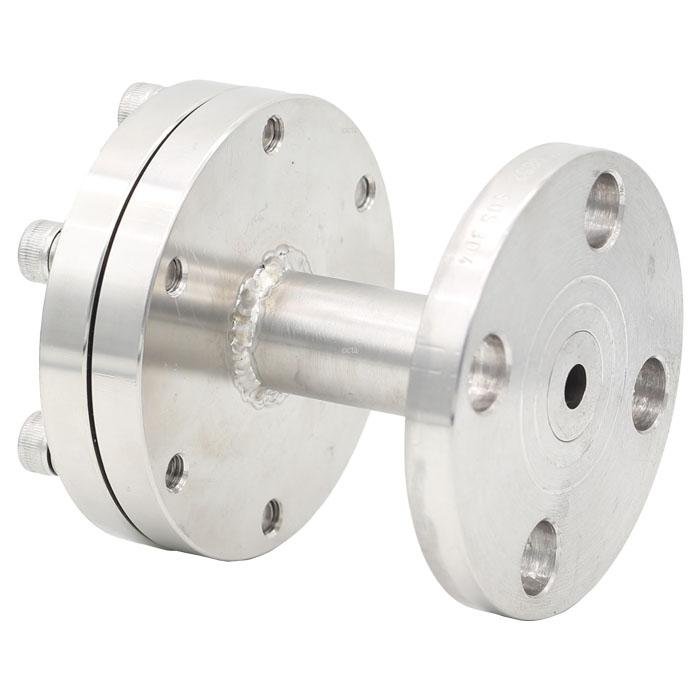

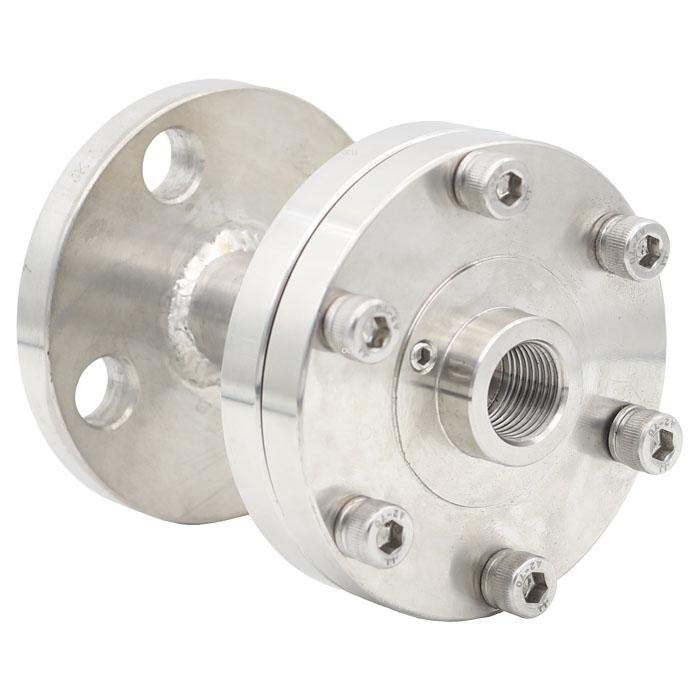

Diaphragm Seal Model : DS-H flange

A Diaphragm Seal is an important piece of equipment for many industrial and laboratory applications. It is used to create a vacuum or to prevent the escape of gas or fluid. In order to select the right Diaphragm Seal for your application, you must understand the different types available and how they are used.

Connection

Instrument Connection : NPT ½” Female

Process Connection : Flange

Pressure Rating Maximun : -1 to 25 bar

Operating temperature maximum : -45 to 150 deg C

Material Body : SS316

Diaphragm : SS316

Gasket : PTFE


ไดอะแฟรม ซีล รุ่น DS-H Flange

ไดอะแฟรม ซีล เป็นอุปกรณ์สำคัญสำหรับงานอุตสาหกรรมและห้องปฏิบัติการหลายประเภท ใช้เพื่อสร้างสูญญากาศหรือเพื่อป้องกันการรั่วไหลของก๊าซหรือของเหลว ในการเลือกไดอะแฟรมซีลที่เหมาะสมกับการใช้งาน จะต้องเข้าใจรูปแบบต่างๆของไดอะแฟรมที่มีอยู่และวิธีการใช้งานอย่างถูกต้อง

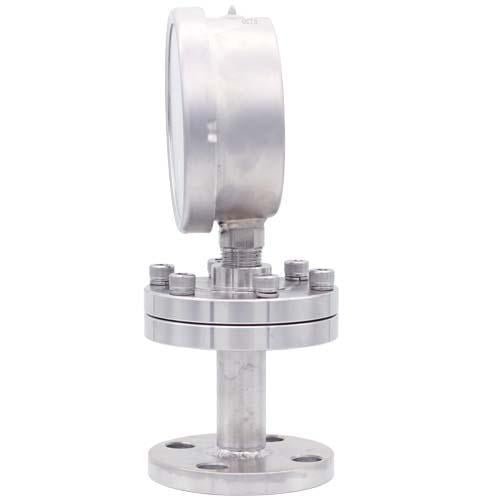

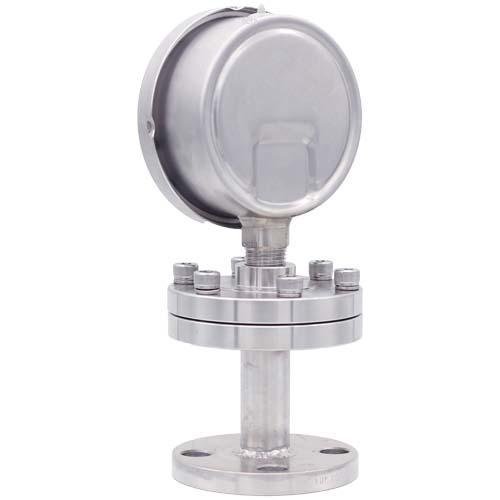

Gallery for Pressure Gauge OCTA with Diaphragm Seal

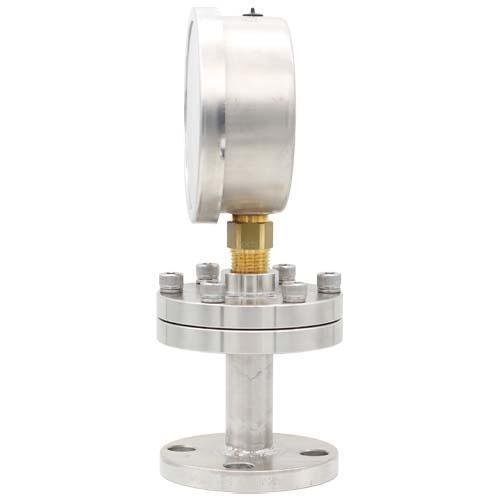

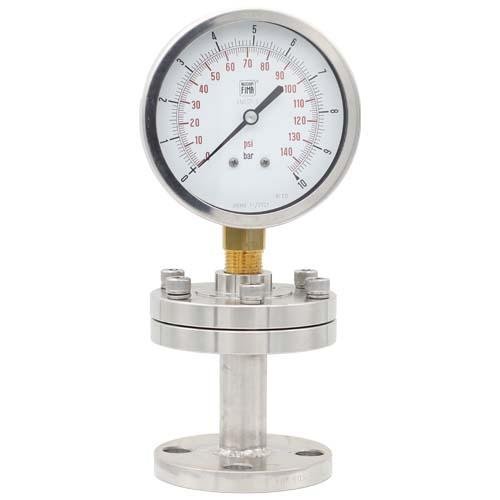

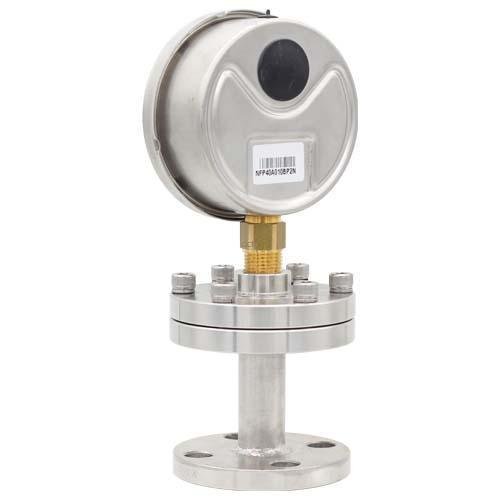

Gallery for Pressure Gauge Nuova Fima with Diaphragm Seal
