Pressure-Transmitter TR-3000

(1 customer review)
Category

Application

| TR-3000 pressure transmitter adopt high performance chips, and deal with the special amplified chip, integrative configuration, and smart profile, they are widely used in the field of hydraulic pressure, medicament and sanitation, constant pressure water supply system and so on.

✓ Stainless steel wetted parts

✓ Excellent resistance to corrosive

✓ Small figure design, any position to install Various signal output

Table of Contents

Description

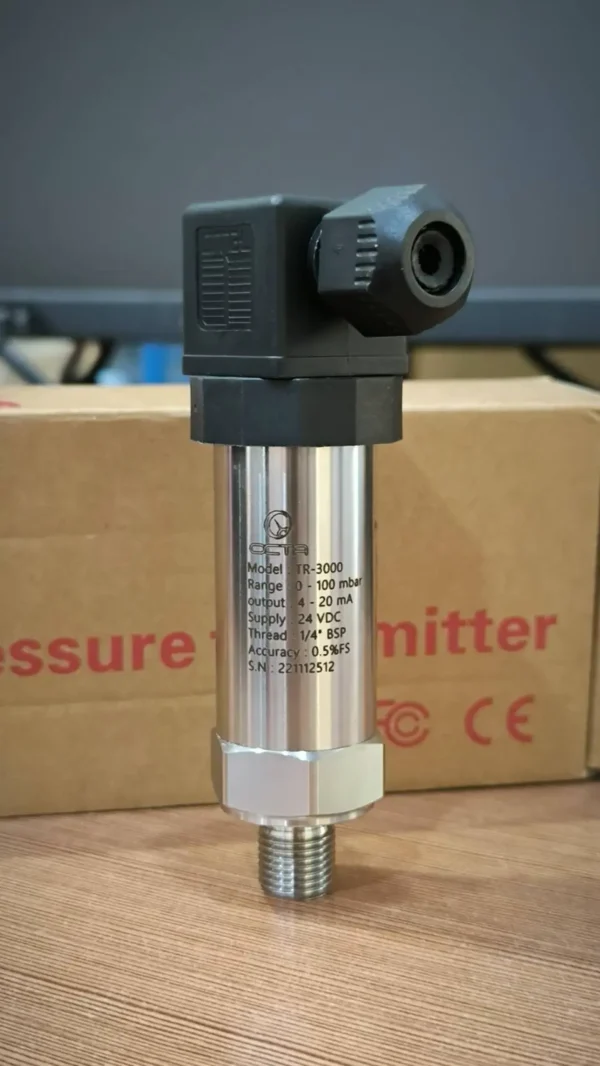

PRESSURE TRANSMITTER : TR-3000

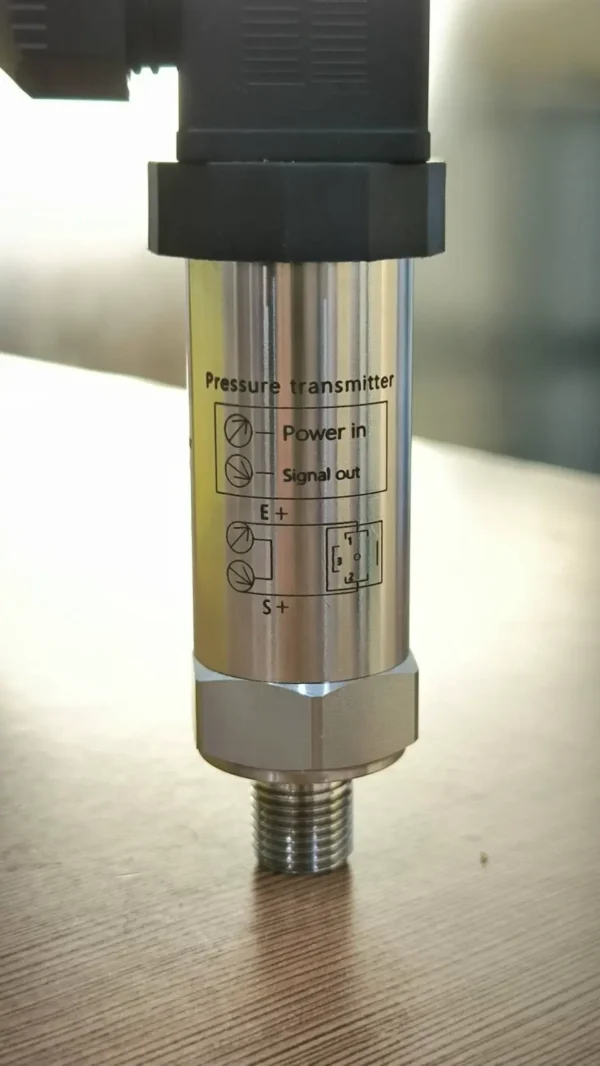

Connection

Pressure range: -100KPa~0KPa~2500bar

Combined error: ±0.25%; ±,0.5%.+-1.0%

Output: 4~20mA, 0~20mA, 0~5V, 0~10V

Input voltage:24VDC

Operating temperature: -40°C~125°C

Electric connection: M12 connector,

Five pin bended connector,

Hirschman and direct down-lead

Process connection: 1/2 BSPP, 1/4″ BSPP
