GS-63,GS-100 SS,Bottom

Applications
∎ Measuring pressure of gas or liquid which is non-corrosive,explosive and no crystallization , precipitation. The most notable character is they can test pressure properly even installed on violent vibration machine or equipment.
∎ Applicable to working environment with intense vibration, machinery and equipment operational for a long time
∎ Scale range available , three scales unit bar / psi / kg/cm2



Table of Contents

Description

Pressure Gauge OCTA Model : GS-63 , GS-100

Specification

Nominal size : GS63 : 63mm. (2.5”)  , GS100 : 100mm. (4″)
Design : EN837-1
Accuracy class : GS63 : 1.6 , GS100 : 1.0
Operating temperature : Ambient : -40 to 70 deg C Medium : + 70 deg C

Material

Case : Stainless steel
Window : Toughened glass
Dial plate and pointer stop : Aluminum
Pointer : Black aluminum
Bourdon tube : Stainless
<100 bar : C shape
>100 bar : Helical type
Connection : Stainless
Movement : Stainless
Protection Class : IP 65

Options

Silicone oil filling , Glycerin
Adjustable pointer (GS100 only)

*Dimension  :  see specification

——————————————————————————————————————————–

เพรชเชอร์เกจ หรือเกจวัดแรงดัน เหมาะสำหรับ

∎ วัดแรงดันสำหรับงาน แก๊ส หรือของเหลว ที่ไม่มีสารกัดกร่อนหรือตะกอน
∎ สามารถทำงานได้แม้ขนาดเครื่องจักรทำงาน และสามารถทำงานได้ตลอดเวลา
∎ มีหน่วยวัดแรงดันหลายช่วงการวัด ในหนึ่งหน้าปัด มีช่วงการวัดแรงดันถึง 3 หน่วย คือ bar / psi / kg/cm2

ขนาดหน้าปัด : รุ่น GS63 : 2.5 นิ้ว , GS100 : 4 นิ้ว
มาตรฐาน : EN837-1
ความแม่นยำ : GS63 : 1.6 , GS100 : 1.0
อุณหภูมิ : Ambient : -40 to 70 deg C Medium : + 70 deg C

วัสดุ

ตัวเรือน : สแตนเลส
หน้าปัด : Toughened glass
หน้าปัดช่วงการวัด และตัวหยุดเข็ม : อลูมิเนียม
เข็ม : Black aluminum
เกจวัดภายใน : สแตนเลส
<100 bar : C shape
>100 bar : Helical type
ข้อต่อ : สแตนเลส
มาตฐานกันน้ำกันฝุ่น : IP 65

ออฟชั่น

สามารถเติมน้ำมันที่ตัวเกจวัดแรงดันได้
ปรับเข็มได้ เฉพาะ GS100

*ขนาดและมิติรุ่น : ดูได้จากสเปคแนบ

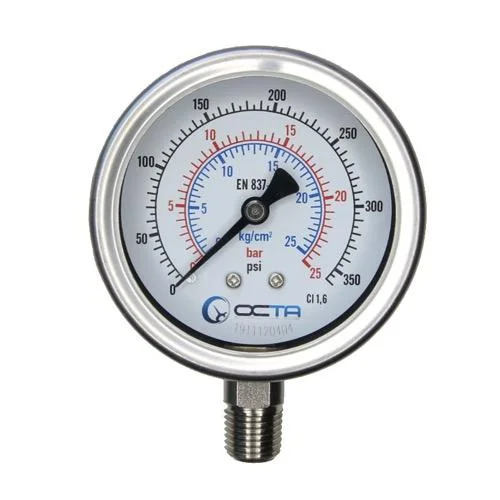

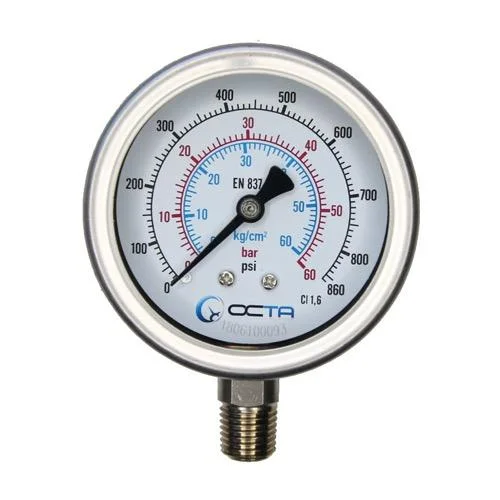

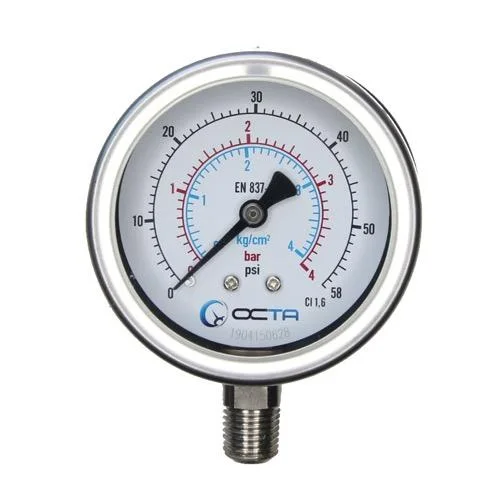

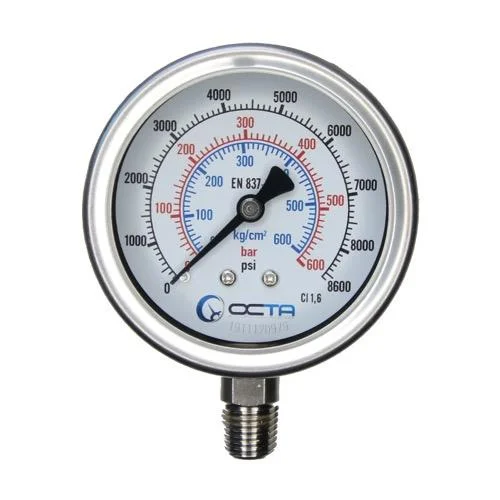

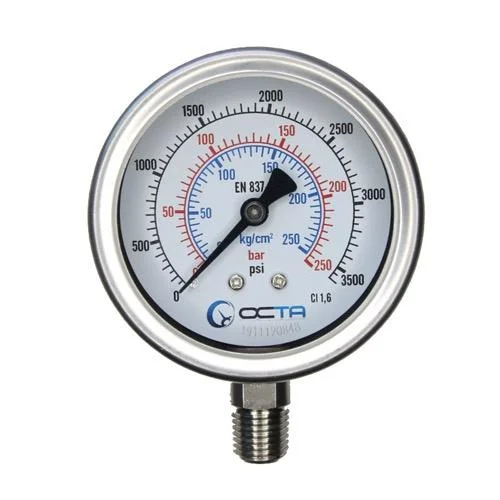

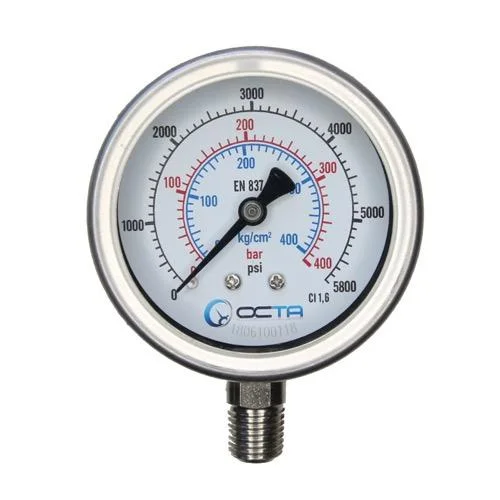

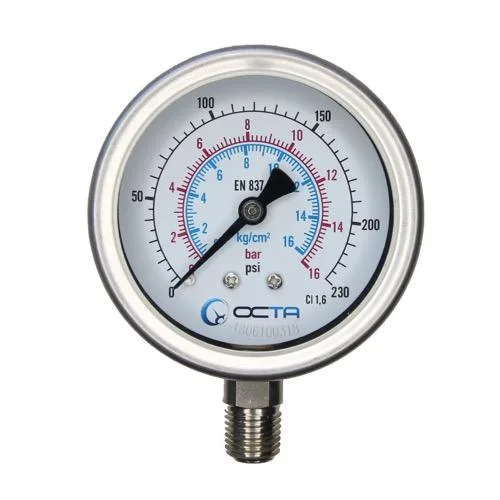

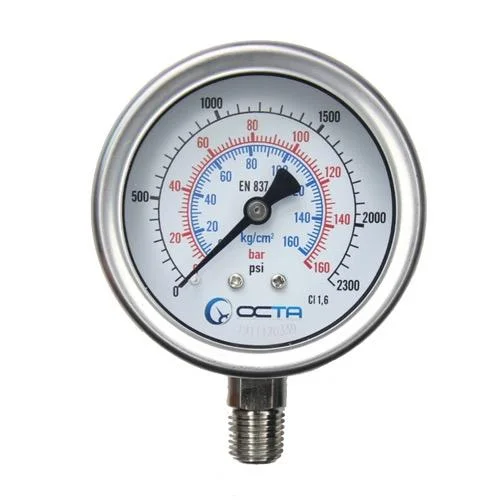

Gallery of Pressure gauge GS-Series "OCTA"

รูปเกจวัดแรงดัน ทุก Range

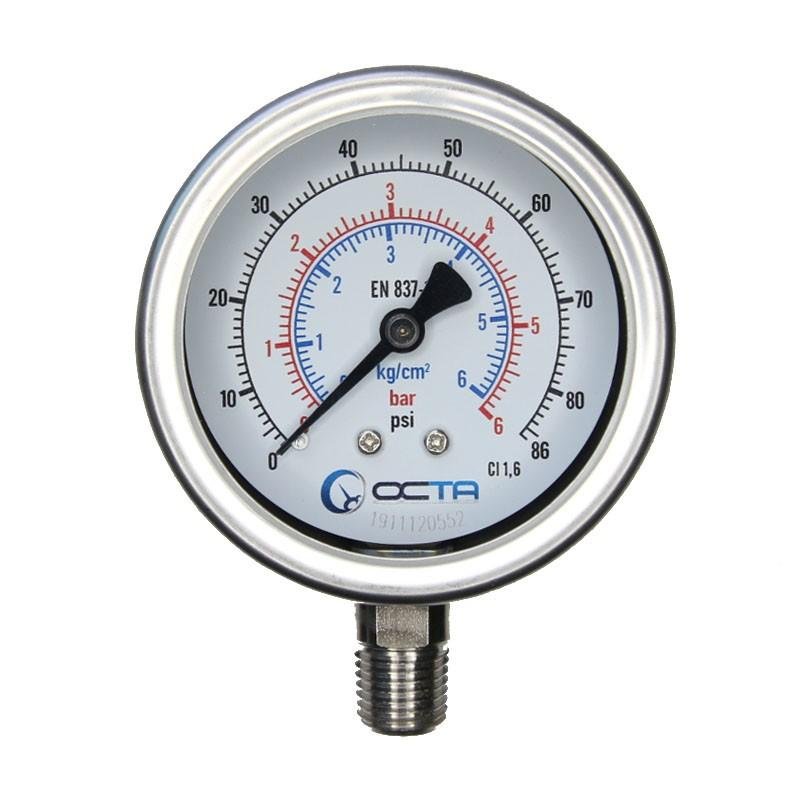

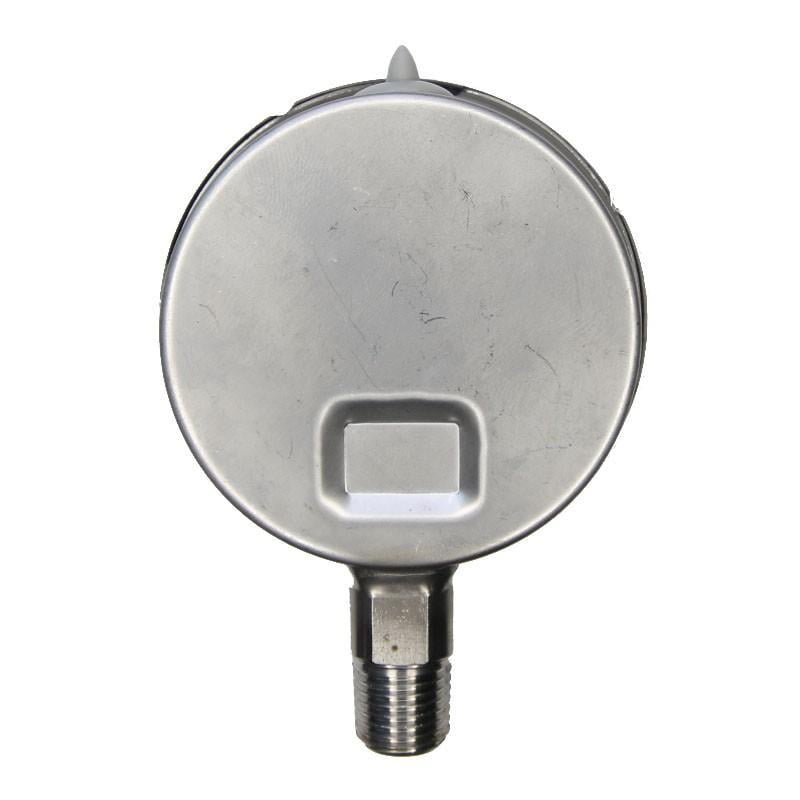

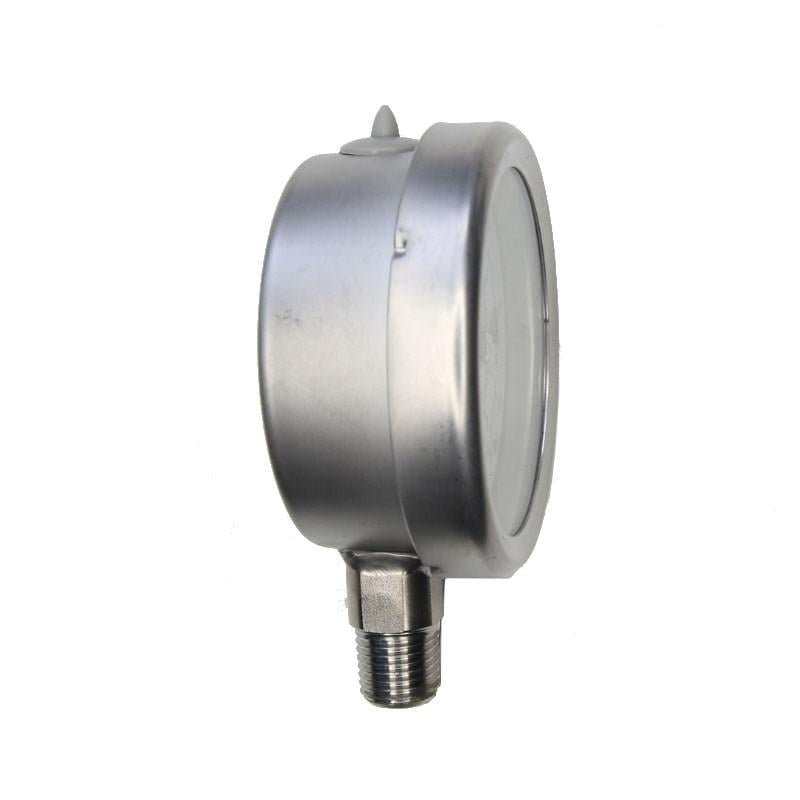

เกจวัดแรงดัน เพรสเชอร์เกจ pressure gauge_octagauge_gs63_cover

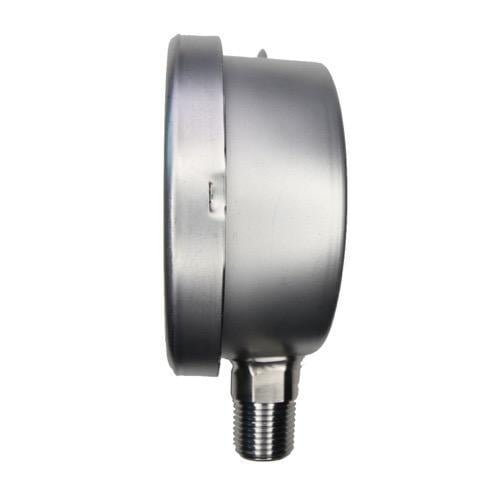

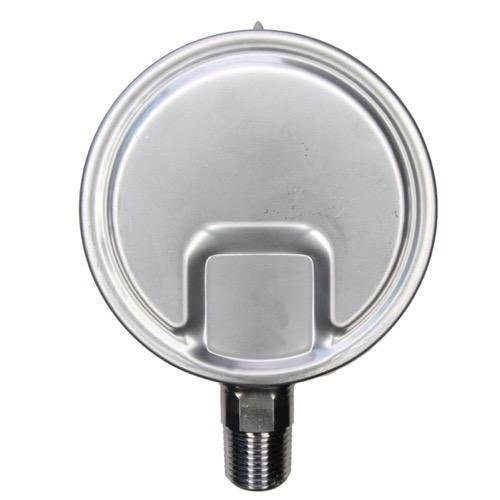

เกจวัดแรงดัน เพรสเชอร์เกจ pressure gauge_octagauge_gs100_cover

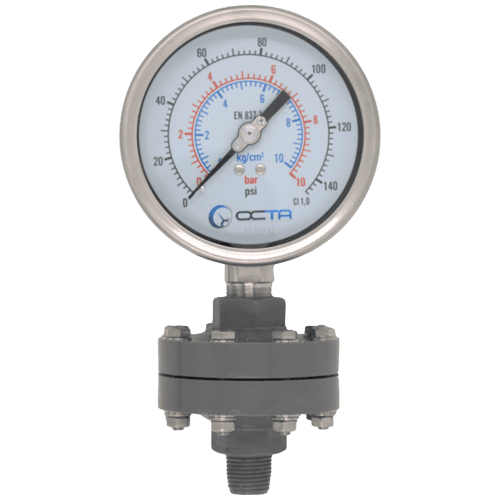

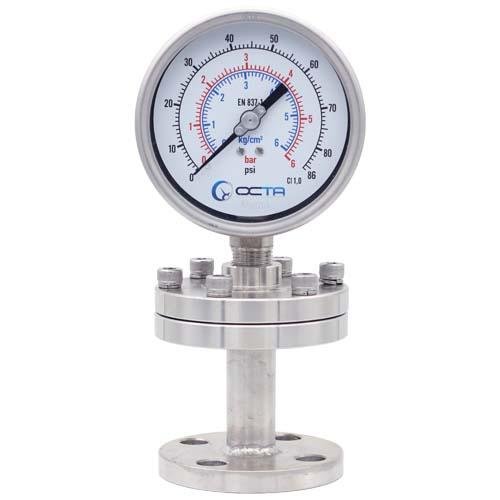

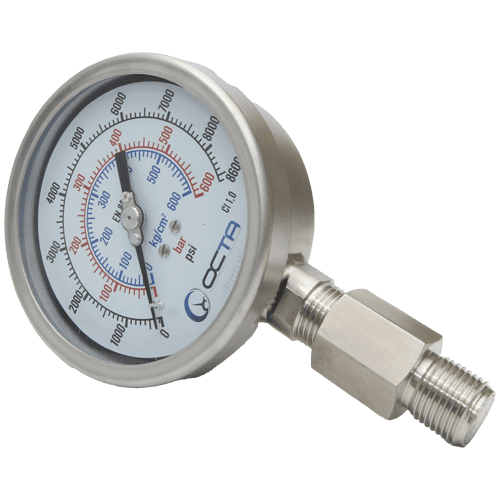

Diaphragm Seal เพรสเชอร์เกจติดไดอะแฟรมแบบต่างๆ
